PACKING INFORMATION
- 20FT container 12Packages/384pcs
- 40HQ container 30Packages/952pcs
| ELECTRICAL DATA | |||
| Model Type | YN360-60H | YN370-60H | YN380-60H |
| Rated Power in Watts-Pmax(Wp) | 360 | 370 | 380 |
| Maximum Power Voltage(Vmp) | 33.96 | 34.35 | 34.80 |
| Maximum Power Current(Imp) | 10.60 | 10.77 | 10.92 |
| Open circuit voltage(Voc) | 40.62 | 41.28 | 41.59 |
| Short Circuit Current(Isc) | 11.29 | 11.57 | 11.63 |
| Module Efficiency(%) | 19.76 | 20.31 | 20.86 |
| Dimension(mm) 1755*1038*35 | |||
TEMPETERATURE&MAXIMUM RATINGS
Maximum Series Fuse Rating(A) 20
Power Tolerance 0～+3%
Pmax Temperature Coefficients(W/℃) -0.350%
Voc Temperature Coefficients(V/℃) -0.270%
Isc Temperature Coefficients(A/℃) +0.048%
Noct Nominal Operating Cell Temperature(℃) 45±2
Operating And Storage Temperature(℃) -40℃～85℃
CONSTRUCTION MATERIALS
Cell (Quantity/Type/Dimensions) Mono
No. Of Cells 18291(602)
Frame(Material) Anodized Aluminium Alloy
Junction Box(Protection Degree) IP68 3 Diodes
Cable(Length/Cross-Section Area) 4mm² Cable 30cm+Mc4

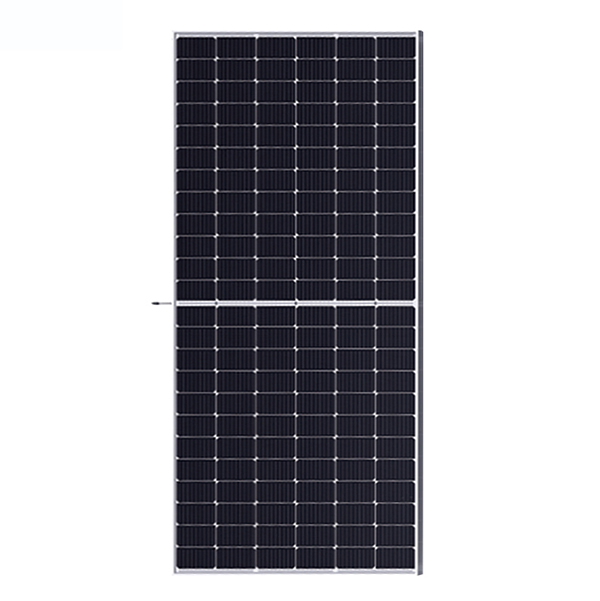

MONO PANEL
390W-415W
PACKING INFORMATION
- 20FT container 10Packages/322pcs
- 40HQ container 25Packages/792pcs
| ELECTRICAL DATA | ||||
| Model Type | YN390-54H | YN400-54H | YN410-54H | YN415-54H |
| Rated Power in Watts-Pmax(Wp) | 390 | 400 | 410 | 415 |
| Maximum Power Voltage(Vmp) | 30.68 | 30.98 | 31.44 | 31.60 |
| Maximum Power Current(Imp) | 12.71 | 12.91 | 13.04 | 13.13 |
| Open circuit voltage(Voc) | 36.74 | 37.10 | 37.58 | 37.77 |
| Short Circuit Current(Isc) | 13.50 | 13.80 | 13.94 | 14.03 |
| Module Efficiency(%) | 19.95 | 20.45 | 20.97 | 21.22 |
| Dimension(mm) 1724*1134*35mm | ||||
TEMPETERATURE&MAXIMUM RATINGS
Maximum Series Fuse Rating(A) 25
Power Tolerance 0～+3%
Pmax Temperature Coefficients(W/℃) -0.350%
Voc Temperature Coefficients(V/℃) -0.250%
Isc Temperature Coefficients(A/℃) +0.04%
Noct Nominal Operating Cell Temperature(℃) 45±2
Operating And Storage Temperature(℃) -40℃～+85℃
CONSTRUCTION MATERIALS
Cell (Quantity/Type/Dimensions) Mono
No. Of cells 18291(542)
Frame(Material) Anodized Aluminium Alloy
Junction Box(Protection Degree) IP67/IP68
Cable(Length/Cross-Section Area) 4mm² Cable 30cm+Mc4
